Dental LED Curing Light

Dental Wireless LED Curing Light 1400 mW/cm2

Product Parameter:

-VOLUME: 33 mm x 29 mm x 246 mm
-Net weight: 132 g
-Power supply:

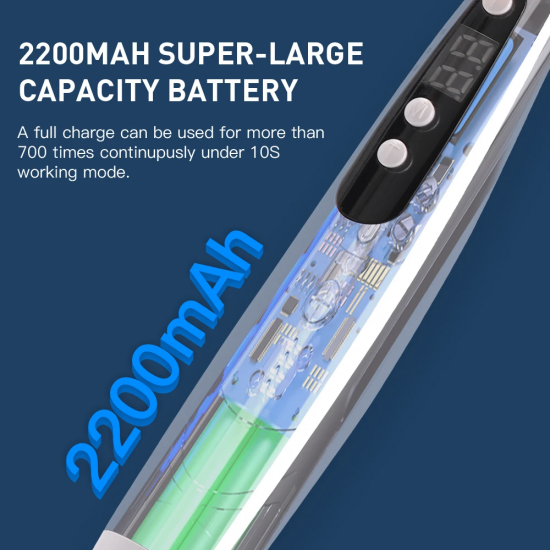

Chargeable battery: 3.7 V, capacity:2200 mAh, with Protection for over voltage, over current and short-circuits.
-Power adaptor: AC100~240 V 50/60 Hz Input power: 10 VA Out power: DC 4.2 V/0.5 A
-LED light feature: 5W blue LED light
-Wave length: 400 nm~515 nm
-Accessible emission limit (AEL): 3.9x10 J
-Checking: LED light is working when correctly
-Operate Radiation: 1000mW/cm2 ~1400mW/cm2

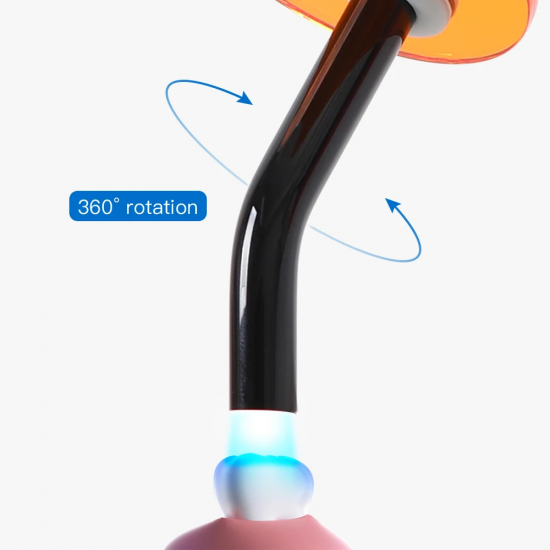

-Optical effective area of optical fiber:50 mm2

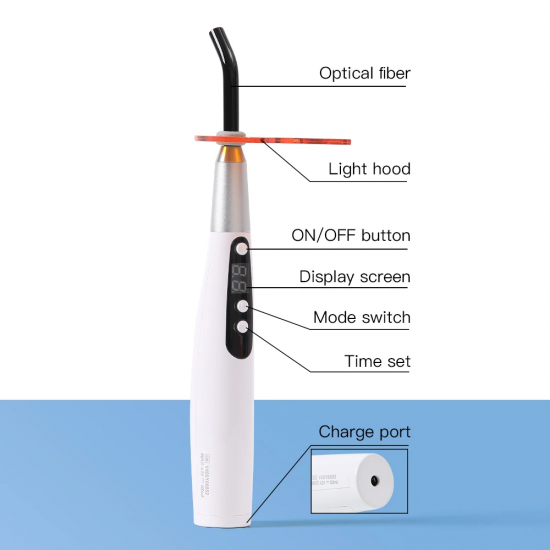

Packing list:

1.Main unit 1pcs
2.Manual 1pcs
3.QC certification 1pcs
4.Power adapter 1pcs
5.Optical fiber tip 1pcs
6.Battery 1pcs
7.Light hood 1pcs

Operation:

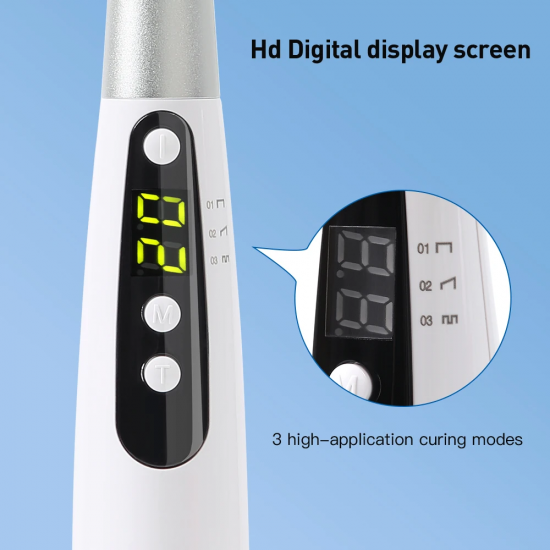

1 . Choose one of three operation modes by pressing the mode switch button on the curing light.
Full power: The screen shows 01, the blue light radiates in full power, light intensity: 1000mW/cm2 ~1400mW/cm2.(recommending mode for clinical)
Progressive: The screen shows 02, the blue light power increase stronger continually, after 5 seconds reaches to the highest power，light intensity: 1000mW/cm2 ~1400mW/cm2.
Pulse: The screen shows 03, the blue light works on the pulse condition. light intensity: 1000mW/cm2 ~1400mW/cm2.
2. Press the "T"time set button to choose from3, 5,10, 15, 20, 25, 30, 35, 40 seconds for working time.
3.When the shooting period is done, press the "I" on/off button again for next shooting period. If the device becomes hot, the user should stop using the device and wait till the device cooling down. Recommending shooting period is not over 10 times.
4.Low battery alert: This device contains the low battery checking function. When the battery is low of power, the screen will blink.
5.The device will be automatically power off after 1 minutes in idle, and press any button to start.
6.The solidification effect for composite resin is not less than 4mm in 10 seconds.
